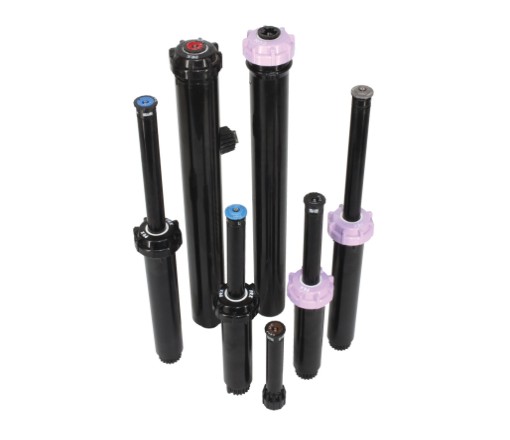

570Z PRX Series
- Zero-flush seal prevents flushing on pop-up
- Several body sizes—to satisfy varying installation requirements
- 115 different nozzles provide tremendous versatility
- Ratcheting riser feature for easy and reliable arc adjustment
This pressure regulating model is ideal for applications with high wind or varying operating pressures.
Patented In-riser Pressure Regulator
Maintains constant 30 psi (2,1 Bar) psi outlet pressure, which minimizes misting and fogging caused by pressures above 30 psi (2,1 Bar).
Zero Flush Wiper Seal
Prevents flushing on pop-up, allowing more sprinklers on the same line.
Enhanced Retraction Spring and Wiper Seal
Robust retraction spring and enhanced seal material ensures positive pop-up and retraction on all 570Z models.
Small 2” (50mm) Diameter Cap
Less visible, reducing damage from exposure or vandals.
| Radius |
2'-17' (.6 - 5.2 m) |
| Flow |
0.05-3.45 GPM (.2 - 13.1 LPM) |
| Recommended Operating Pressure |
30-75 PSI (2.1 - 5.2 BAR) |
| Maximum Operating Pressure |
75 PSI (5.2 BAR) |
| Inlet |
1/2" (1.3 cm) female threaded |
| Pop-Up Height |
4", 6", 12" (10.2, 15.2, 30.5 cm) |
| Body Diameter |
1 3/8" (3.5 cm) except 12P - 1 5/8" (4.1 cm) & 12P SI - 1 3/4" (4.4 cm) |
| Cap Diameter |
2" (5.1 cm) |
| Body Style |
Side inlet option |
|
